How To Install A Set Of Headlamp Assemblies
If the front of your vehicle is its "face", then the headlamps have long been considered the vehicle's "eyes". Everyone notices them. One of the most distinctive changes you can make to the face of your car or truck is to replace the factory headlamp assemblies with a custom set. Your ride will take on a personality all its own, and will gain a distinctive appearance that will set it apart from all the other look-alike vehicles on the road.
Lumen headlamps are designed to fit in the exact location of your factory units and cost less than you might think. In the scope of this article, we'll review the step-by-step basics of installing complete headlight units designed for your specific vehicle.
Before you begin
For any new part, headlights, or otherwise, it's always a "best practice" to start by unpacking the components and verifying that everything is in good shape. For your new headlamp assemblies, remove them from the box and ensure that there is no physical damage.
If your headlights have single wires for DRL or halo lights, touch these wires (red or white are usually positive, and black is usually negative) to a 12-volt source such as the car battery to ensure that all lights function.
Make sure that everything you ordered is included, and if the light manufacturer included their own installation instructions, use them along with this guide.
Removing & Installing Bumper Covers (If Required)
Tools needed: flat wrenches, socket wrenches, rivet gun (on certain vehicle applications), screwdriver(s), Torx head bits (if applicable), electric drill (if applicable)
This is often the first step because many modern vehicles require the plastic front bumper cover to be slid loose an inch, or completely removed in order to access the anchor points where headlight assemblies bolt on. If you're not sure whether this step is needed, we recommend checking with your vehicle manufacturer or accessing a repair manual online. Removing and re-installing the front bumper cover is relatively easy because most are designed to unbolt and slide off with basic hand tools.
Taking a close look at the bumper cover, you'll notice that the bolts which secure it in place are typically exposed once you open the hood. They can also be found underneath the vehicle where the bumper cover meets splash shields and near the edge of wheel well openings where wheel well liners meet fenders. There may also be small plastic caps or clips covering such bolts, so remove them with a small flathead screwdriver.
Remove the bolts themselves with an applicable socket wrench or flat wrench. In the event your vehicle manufacturer has used rivets to secure things (wheel well areas), they'll need to be drilled out with a traditional drill. Then you'll need a rivet gun to reinstall new ones - not an expensive purchase, but the proper tool to use. When drilling out rivets, bits designed for drilling into metal are most suitable due to a higher heat rating.
Once all fasteners are removed, the bumper cover can be detached. Many are designed to slide horizontally along special bracket pieces mounted underneath before coming completely loose, so move the bumper cover in this fashion first if you aren't able to obtain specific instructions on your make and model.
Unbolting Your Old Headlamp Assembly
Tools needed: Socket wrench, screwdriver(s)
Depending upon the year and model of your car, you may need to remove your vehicle's front grille section in order to access bolts or clips that secure the headlight assembly in place. This can be done by removing the screws from the top or sides of the grille and/or by releasing hold-down clips found on some vehicles with a flathead screwdriver.
Once any grille, trim, and bumper cover sections have been removed in order to provide access to headlamp assembly attachment points, you can proceed with unbolting them - usually a small socket wrench serves best for such applications. Look for hold-down bolts in the metal body panels above and to the side of your headlamp assemblies. Some vehicles also feature hold-down clips on the headlamp assembly which can be released with a flathead screwdriver.
After all applicable hold-down bolts and clips have been removed, it's time to slide your old headlamp assembly away from the vehicle - wiggling it gently as you go. Remember, unless you disconnected them earlier from behind, electrical wiring harnesses are still attached. Don't remove any bulbs from your factory housings just yet. Set your OEM headlamp assemblies aside, in the event that you wish to reinstall them one day, for example, if you decide to sell the vehicle.
Disconnecting And Reconnecting Electrical Wires
Tools needed: Wire stripping tool, wire connectors, pliers (if applicable), electrical tape

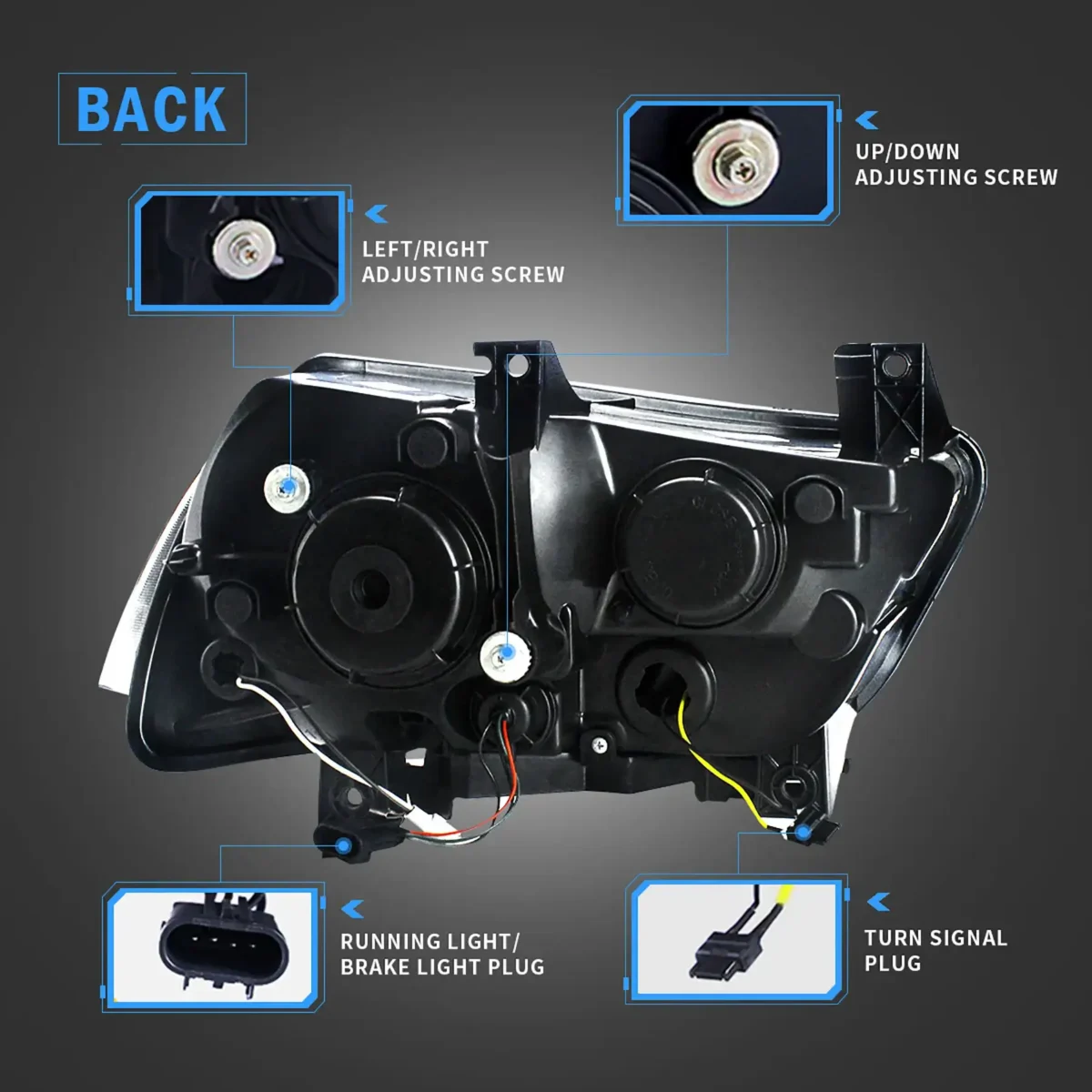

Once you've pulled the old headlamp assembly away from the vehicle a short distance, it's time to get a full look at wiring harnesses that are attached. Even if you've removed one or more connectors from the rear of the assembly before unbolting it, there may be others (such as separate wires to side marker bulbs) still attached which were previously obscured. Once you can see everything, unhook any and all electrical connectors from the back of the headlight assembly. Usually, either a simple squeeze on the edges of the connector or pulling up on a tab is enough to cause the connector to release its grip, but if a thin wire bar is present, it usually needs to be slid into an unlocked position first. If you're not sure how a locking clip is designed to release, it's best to further research instructions for your make and model.
You are now ready to begin installation of the new lights. We will make all of the electrical connections first, while we have access to the backs of the assemblies. Then we will perform the mechanical install into the front of the car's body.
Custom headlight assemblies we sell are designed to fit into your specific vehicle as easily as original equipment,with mounting points that match you make and model’s existing specifications.
Transferring Bulbs From Old To New Assembly
Depending on your year and model car, plus the design of the new custom lights, you may need to transfer some bulbs. In general, the new light will include low/high beam headlight bulbs. In many cases, the turn signal (incandescent) bulb is not included in the new assembly. This is very easy to rectify. You will need to remove the signal bulb from the old lamp (do NOT disconnect any wires) and install it, in its existing housing, into the new lamp. There may be a paper sticker which needs to be removed first.
The Plug-and-play Portion Of The Installation
Both your old and new headlamps have low and high beam headlamps. When you removed the old units, you disconnected an electrical plug from the car or truck's wire harness. On the new assembly, you should find an electrical plug shaped exactly like the plug on the old assembly. This portion of the electrical installation is called 'plug-and-play' because you literally only need to connect the new plug into the existing harness. If you have purchased lamps without any additional lighting elements like halos or LED lights, you are done with the electrical installation.

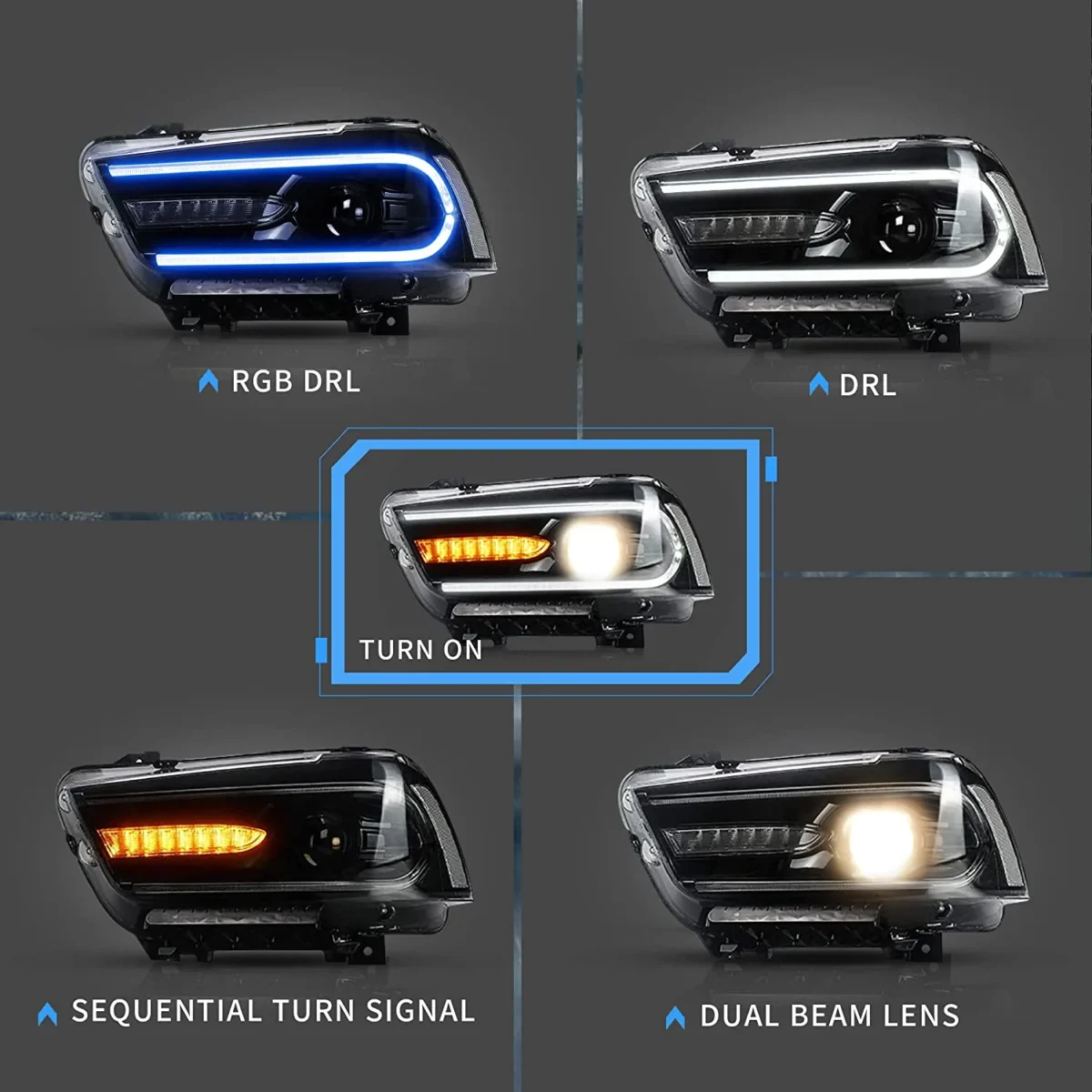

Connecting The Extra Wires Found on Halo and LED Custom Headlamp Assemblies
Connecting to Parking/Running Lights
STEP 1. First, locate the parking lights on your vehicle Headlight housing.
Some Parking lights come with two (running lights, ground) or three (running lights, turn signal, ground) wires.
To determine which wires are what on the Parking lights, we use a volt meter.
The volt meter has a positive(red) and negative(black) needles.
STEP 2. First turn on the parking light and signal on. Then Pinch the Negative needle to a ground or negative wire(as shown). Then Pinch the Positive wire to one of the color wires on the turn signal.
STEP 3. To understand how to read the volt meter in simple term: When the needle stays constant on high voltage, the wire that was pinch is a Running/Parking light. Meaning the parking light on your vehicle stays on whenever the lights are turned on.
CAUTION! If the needle bounces on the meter, the wire is a turn signal. The voltage to the turn signal pull high and low in order for the turn signal to blink.
STEP 4. Once you locate the running wires, use the quick connects and connect the CCFL/LED Positive wires to the running lights. Negative wires to the negatie wires on the Parking Lights.
Before putting the headlight back on, check the CCFL/LED’s make sure they all lid up.
STEP 5. Install CCFL/LED Headlamp into the car.
